Barker Built® Heavy-Duty Double Bunks
Details
- One-piece, steel pans with pre-punched bolt holes for optional add-ons, also provide ventilation and drainage.
- Legs are either factory-welded to the frame or shipped detached for easy bolt-on field assembly.
- Each leg has one floor-mounting tab with one 5/8"anchor hole at the bottom and bolt hole at the top for stacking.
- Bolts, lock-washers, nuts, and leg braces are provided with bolt-on leg models. Legs can be field welded if desired.
- Gray full finish powder coat for excellent resistance to corrosion, heat, impact, abrasion and fading.
- Bunks should be securely anchored to the floor. Each bunk requires 4 anchors for floor attachment.
- Manufactured in USA
Anchor Kits
Standard Options
| ITEM # | DESCRIPTION | DIMENSIONS(H X L X D) |
|---|---|---|
| DB1 | Bolt-On Legs | 52" × 76" × 27" |
| DB32 | Bolt-On Legs | 52" × 76" × 32" |
| DB38 | Bolt-On Legs | 52" × 76" × 38" |

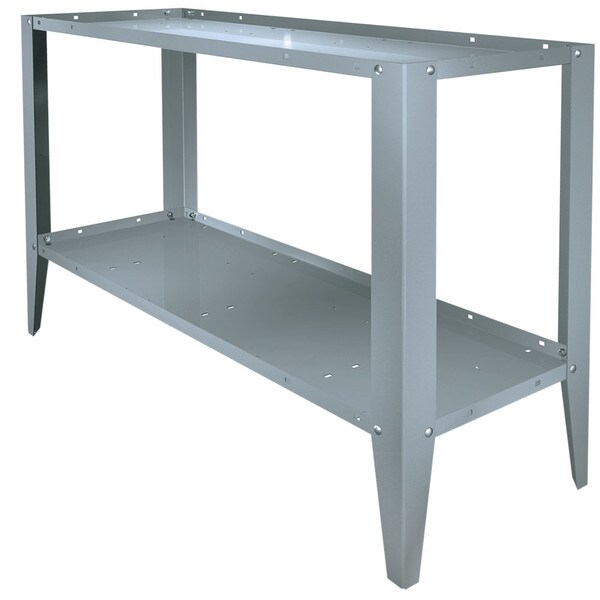

Image shown for WDB1
Metal products are made to order and non-returnable
